Super Fast Charging Station

Parking lots | Commercial Building | Workplaces | Fleet |Gas Station

  • Power: 60kW~320kW optional
  • High-speed charging, average charging time about 30~60mins
  • Charge up to 2 vehicles simultaneously
  • Intelligent charging and dynamic load balancing
  • Charging connectors support CCS1, CCS2, CHAdeMO, GBT Optional

    Description

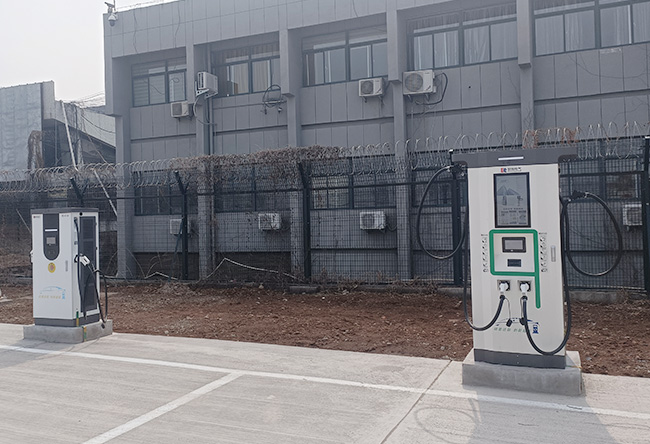

    Risen company provides DC fast electric vehicle charging stations with 60kW-320kW output power, The dual-port offers different combinations with CCS1, CCS2, CHAdeMO, and GB/T ports, making it ideal for a wide range of installations, both indoors and outdoors. It’s also possible to personalize it with custom logos and colors to have the overall look of your brand.

    Technical Advantages

    High Compatibility
    Suitable for All Electric Vehicles

    • Charging connectors support CCS1, CCS2, CHAdeMO, GBT Optional
    • Charging communication protocol is compatible with the new and old GB/T27930
    • The charger adopts a wide constant power range charging module, which can achieve full power charging from a car with a battery voltage of 300V to a bus with a battery voltage of 1000V

    EV charging payments

    Multiple payment methods
    for chosen

    • EV fast chargingconnectors: support CCS/CHAdeMO/GBT
    • RFID Cards: Swipe the RFID card against the card reader to start the charging
    • Credit/Debit Cards through POS: The most straightforward to pay with a credit card.
    • Scan the QR code on the screen

    Benefits

    • EV fast chargingconnectors: support CCS/CHAdeMO/GBT
    • Charging speeds up to 320KW 96% power efficiency
    • Support RFID card reader LCD touch screen & user - friendly interface
    • Network connection Internet, 4G
    • Fully compliant with OCPP
    • Mobile APP and intelligent management system
    Cabinet Design

    Sheet metal: 1.5mm galvanized steel plate.
    Honeycomb design of air inlet and outlet, Multiple waterproof: dense mesh, large heat dissipation area.
    Protection: IP54, can be installed outdoors.

    Highlights Advantages

    Advertising Screen: Extra large scrolling screen to promote and market your business.
    Automatic cable retraction device: Improve user convenience and reduce cable wear.

    Fully Customizable

    Customized Service: Logo, colors, language… to meet the unique needs of different businesses and users.
    Modular Custom: can be tailored to fit specific requirements, whether it’s for a particular vehicle type, location, or energy output

    Specification

    • DC Fast EV Charger 60-320KW



    DC Fast Charger 60KW/120kW/160kW/180kW/240kW/320kW

    Mechanical

    • Dimension(W*D*H) 800x750x1850mm
    • Weight 300-380kg
    • Cable Length Standard 5m or Customized

    AC Input

    • Input Vlotage 380V±15 % /400V±15%/440V±15 %
    • Input Voltage Type TN – S(Three Phase Five Wire)
    • Input Current Rating Max 250A
    • Working Frequency  45~65Hz
    • Power Factor ≥0.99
    • Efficiency≥96 %

    DC Output

    • Output Voltage 200V – 750V / 50V – 1000V
    • Charging Connector Dual GBT / CCS, or CCS / GBT + CHAdeMO
    • Simultaneous Output Mode Dynamic Distributor
    • Output Current DC – CCS 200A; GBT 250A; CHAdeMO 125A;

    Interface

    • Display 7” LCD Touch Screen
    • User Authentication QR Code, RFID, Mobile APP, POS / Credit Card(Optional)
    • Network Connection Internet Access Via 4G / Ethernet
    • Communication Protocols OCPP1.6

    Protection

    • Electric Protection Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit & Surge Protection…etc.
    • Working Temperature -30℃ ~ +50℃
    • Protection Level IP54
    • Warranty 2Years
