7KW AC Charger 22kW Type 2 AC EV Charger Type 2 AC EV Charger AC EV Charger for commercial chargepoint charger

Level 2 Charger

Home Charging | Residential | Hotel | Office |Public

  • 1-Phase 2x7kW & 3-Phase 2x22kW available
  • Charging two vehicles at the same time
  • Smart charging with dynamic load balancing
  • Ethernet/4G communication
  • RFID Card, mobile App, POS
Request Pricing Chat Now
Download PDF
share

    Description

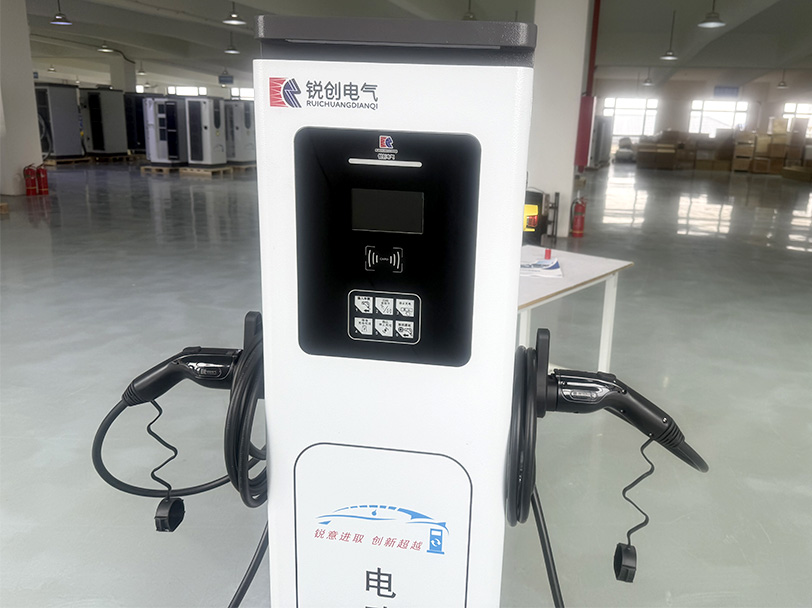

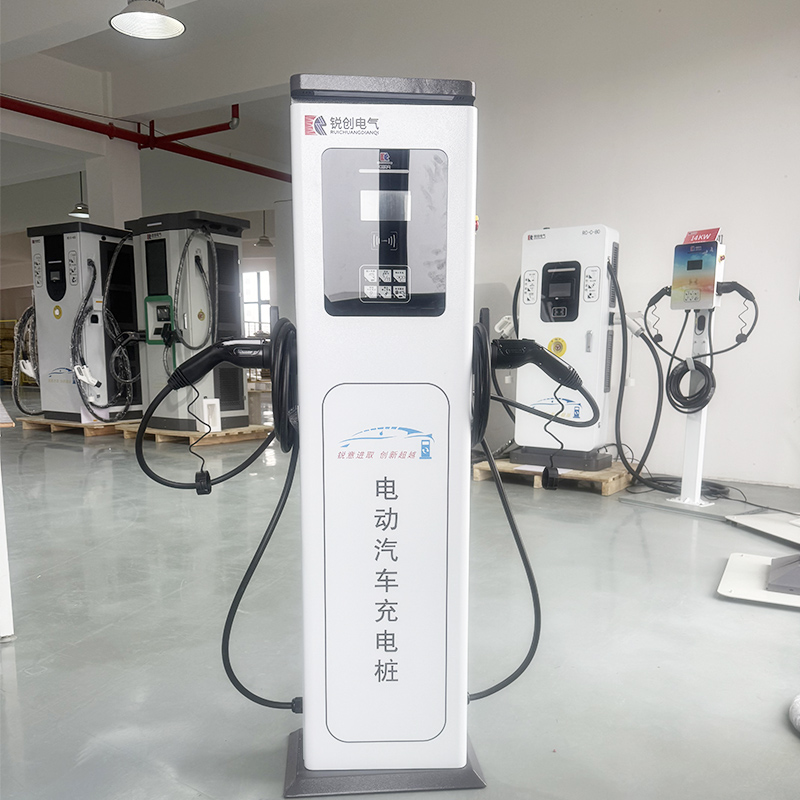

    Risen newly launched dual port floor mounted 7kW/22kw AC chargers can charge 2 cars simultaneously and can adjust dynamic balance the offer current between the two connectors automatically. This Commercial EV charger is especially designed for commercial charging purposes. High protection level & anti-theft design make it perfect for outdoor charging locations like Gas stations, Parking lots, Street corners, etc.

    Home
    Commercial Building
    Gas Station
    Outdoor Parking
    Shopping Center

    Smart Charging

    Easily manage your smart AC charger via the app

    • Real-time monitoring charging status, Track charging activity in real-time and view charging sessions and reports.
    • Manage charging schedule, schedule the charging of your EV during off-peak hours to save on electricity costs.
    • Set schedules to charge at any time
    • Support dynamic load balancing
    • Intelligent Ethernet, Cellular, and WLAN switching

    Dynamic Load Balancing

    Home Energy Management with DLB

    Protect local grid network from overloading when multiple chargers are being used

    Ensure the most efficient use of the power available between EV Chargers and other appliances on-site

    Save you from the costs of any grid upgrades

    dual gun AC Charger

    Benefits

    • Smart charging charger 7kW~22kW power optional
    • Compatible with OCPP 1.6
    • Load Balancing
    • 4G, RFID Card
    • Remote App control
    • Charging connector type 1, type 2
    • Easy to operate, suitable for commercial use.
    Safe and Reliable

    IP65/IK10: operating in extreme weathers and harsh environment conditions
    Integrated protetction functions: Overcurrent protection, overvoltage/undervoltage protection, lightning protection,short circuit protection, ground fault protection

    Easily manage via the app

    Manage charging schedule: Schedule the charging of your EV during off-peak hours to save on electricity costs.
    Charging mode selection: plug & charge mode, remote start/stop mode

    Quality Assurance

    Customer support:  Professional expert team quick response, Rapid on-site service
    Remote technical support

    Certifications: CE/ TUV

    Specification

    • 7kW~22kW Level 2 EV Charger



     7kW~22kW Floor-Mounted EV Charger

    Electrical Properties

    • Output Power 7kWx2 or 22kWx2
    • Voltage & Type Single-phase 230V or Three Phase 380V
    • Output Current  32Ax2
    • Working Frequency 45~65Hz
    • Working Temperature -30℃ ~ +50℃

    Design

    • Display 4.3” LCD Screen
    • User Authentication QR Code, RFID, Mobile APP
    • Network Connection Internet Access Via 4G /Ethernet
    • Communication Protocols OCPP1.6
    • Charging Ports Double ports
    • Charging Cable 5m or Customized
    • Installation Method floor-mounted
    • Material Sheet metal (galvanized plate)

    Protection

    • Electrical Protection Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit & Surge Protection…etc.
    • Protection Level IP65
    • Warranty 2Years

    Mechanical

    • Dimension(W*D*H) 390 x 300 x 1100mm
    • Weight 45kg

    Contact Us Now

    Got questions or need assistance with our Risen EV chargers? Reach out to our friendly team for expert support and guidance. We're here to help you power your journey towards a greener future !

    • Company: Henan Risen Intelligent Equipment Co. , Ltd.

    • Tel: +8618638809223

    • Email: [email protected]

    • Address: No. 515 Peony Avenue, Luolong District, Luoyang City, Henan Province
