DC fast charging station charging stations

DC Fast Charger Station

Parking lots | Commercial Building | Workplaces | Fleet |Gas Station

  • Power: 200kW-360kW optional
  • Charge 80% of an electric vehicle’s battery in just 30-50 minutes
  • Charge up to 2 vehicles simultaneously
  • 7” LCD screen with user-friendly interface
  • Supports all types of electric vehicles
Request Pricing Chat Now
Download PDF
share

    Description

    Risen company provides DC fast electric vehicle charging stations with 60kW-360kW output power, The dual-port offers different combinations with CCS1, CCS2, CHAdeMO, and GB/T ports, making it ideal for a wide range of installations, both indoors and outdoors. It’s also possible to personalize it with custom logos and colors to have the overall look of your brand.

    Commercial Building
    Fleets
    Gas Station

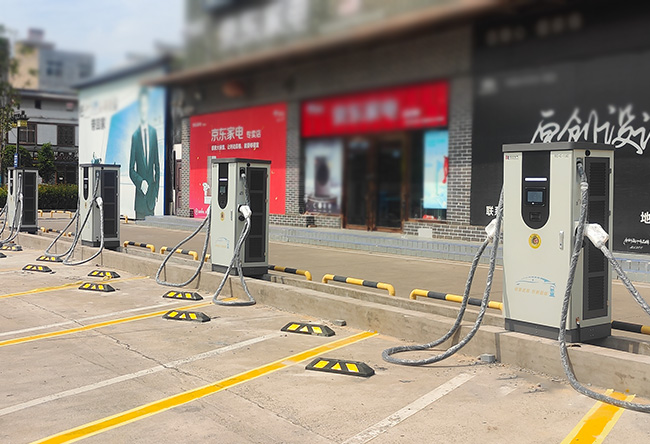

    Outdoor Parking
    Shopping Center / Hospitality

    Technical Advantages

    High Compatibility
    Suitable for All Electric Vehicles

    • Charging connectors support CCS1, CCS2, CHAdeMO, GBT Optional
    • Charging communication protocol is compatible with the new and old GB/T27930
    • The charger adopts a wide constant power range charging module, which can achieve full power charging from a car with a battery voltage of 300V to a bus with a battery voltage of 1000V

    EV charging payments

    Multiple payment methods
    for chosen

    • EV fast chargingconnectors: support CCS/CHAdeMO/GBT
    • RFID Cards: Swipe the RFID card against the card reader to start the charging
    • Credit/Debit Cards through POS: The most straightforward to pay with a credit card.
    • Scan the QR code on the screen
    ev stations

    Benefits

    • EV fast chargingconnectors: support CCS/CHAdeMO/GBT
    • Charging speeds up to 200KW 96% power efficiency
    • Support RFID card reader LCD touch screen & user - friendly interface
    • Network connection Internet, 4G
    • Fully compliant with OCPP
    • Mobile APP and intelligent management system

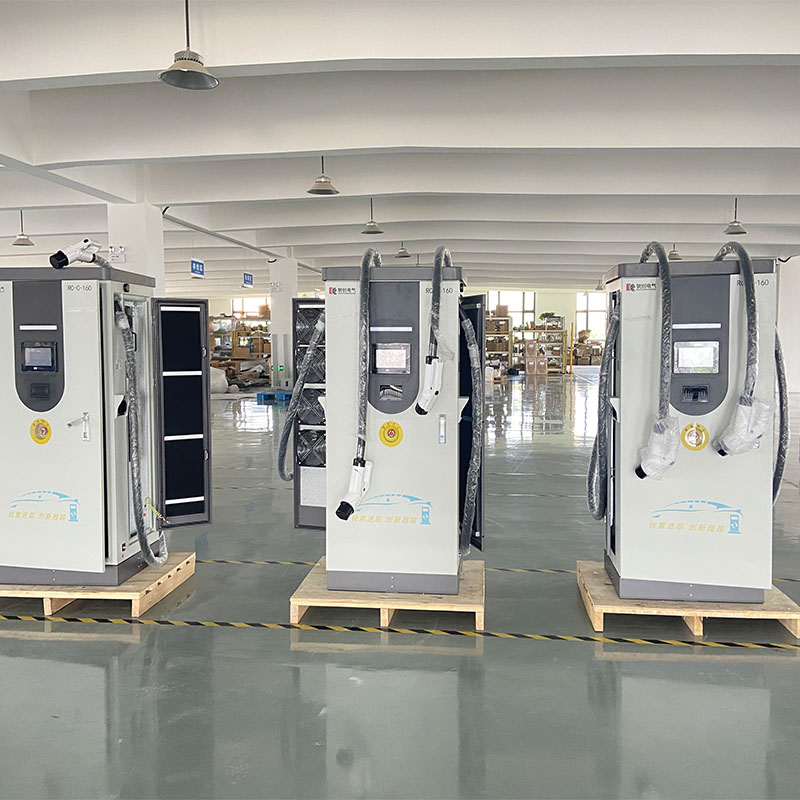

    Cabinet Design

    Sheet metal: 1.5mm galvanized steel plate.
    Honeycomb design of air inlet and outlet, Multiple waterproof: dense mesh, large heat dissipation area.
    Protection: IP54, can be installed outdoors.

    Charging Station Interface

    Easy-to-read displays: Variety of methods to connector the user like Mobile Apps, RFID card.
    Comprehensive info: Provide useful information to the user, such as the charging status, time remaining, and cost of the charging session.

    Fully Customizable

    Customized Service: Logo, colors, language… to meet the unique needs of different businesses and users.
    Modular Custom: can be tailored to fit specific requirements, whether it’s for a particular vehicle type, location, or energy output

    Specification

    • DC Fast EV Charger 200kW-360KW

    DC Fast EV Charger 200kW/240kW/320kW/360KW

    Mechanical

    • Dimension(W*D*H) 800x750x1800mm
    • Weight 380kg
    • Cable Length Standard 5m or Customized

    AC Input

    • Input Vlotage 380V±15 % /400V±15%/440V±15 %
    • Input Voltage Type TN – S(Three Phase Five Wire)
    • Input Current Rating Max 500A
    • Working Frequency  45~65Hz
    • Power Factor ≥0.99
    • Efficiency≥96 %

    DC Output

    • Output Voltage 200V – 750V / 150V – 1000V
    • Charging Connector Dual GBT / CCS, or CCS / GBT + CHAdeMO
    • Simultaneous Output Mode Dynamic Distributor
    • Output Current DC – CCS 200A; GBT 250A; CHAdeMO 125A;

    Interface

    • Display 7” LCD Touch Screen
    • User Authentication QR Code, RFID, Mobile APP, POS / Credit Card(Optional)
    • Network Connection Internet Access Via 4G / Ethernet
    • Communication Protocols OCPP1.6

    Protection

    • Electric Protection Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit & Surge Protection…etc.
    • Working Temperature -30℃ ~ +50℃
    • Protection Level IP54
    • Warranty 2Years

    Contact Us Now

    Got questions or need assistance with our Risen EV chargers? Reach out to our friendly team for expert support and guidance. We're here to help you power your journey towards a greener future !

    • Company: Henan Risen Intelligent Equipment Co. , Ltd.

    • Tel: +8618638809223

    • Email: [email protected]

    • Address: No. 515 Peony Avenue, Luolong District, Luoyang City, Henan Province
