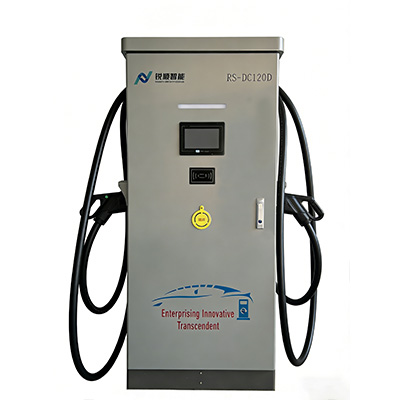

CCS EV Charger

Parking lots | Commercial Building | Workplaces | Fleet |Gas Station

  • Power: 60kW-360kW optional
  • Output Voltage: 50-1000V DC
  • Charge up to 2 vehicles simultaneously
  • Compatible with all electric vehicle
  • Charging connectors support CCS1, CCS2, CHAdeMO, GBT Optional
Request Pricing Chat Now
Download PDF
share

    Description

    CCS EV chargers excel in fast charging, with DC power outputs ranging from 60 kW to 360 kW, allowing vehicles to recharge quickly and efficiently. Widely used across Europe, North America, and other regions, CCS integrates both AC and DC charging options into a single connector, providing flexibility and convenience for EV users.

    Commercial
    Fleets
    Gas Station
    Parking Lots
    Shopping Center

    Technical Advantages

    High Compatibility
    Suitable for All Electric Vehicles

    • Charging connectors support CCS1, CCS2, CHAdeMO, GBT Optional
    • Charging communication protocol is compatible with the new and old GB/T27930
    • The charger adopts a wide constant power range charging module, which can achieve full power charging from a car with a battery voltage of 300V to a bus with a battery voltage of 1000V

    EV charging payments

    Multiple payment methods
    for chosen

    • EV fast chargingconnectors: support CCS/CHAdeMO/GBT
    • RFID Cards: Swipe the RFID card against the card reader to start the charging
    • Credit/Debit Cards through POS: The most straightforward to pay with a credit card.
    • Scan the QR code on the screen
    electric vehicle charging station

    Benefits

    • EV fast chargingconnectors: support CCS/CHAdeMO/GBT
    • Charging speeds up to 240KW 96% power efficiency
    • Support RFID card reader LCD touch screen & user - friendly interface
    • Network connection Internet/4G
    • Fully compliant with OCPP
    • Mobile APP and intelligent management system
    Cabinet Design

    Sheet metal: 1.5mm galvanized steel plate.
    Honeycomb design of air inlet and outlet, Multiple waterproof: dense mesh, large heat dissipation area.
    Protection: IP54, can be installed outdoors.

    Charging Station Interface

    Easy-to-read displays: Variety of methods to connector the user like Mobile Apps, RFID card.
    Comprehensive info: Provide useful information to the user, such as the charging status, time remaining, and cost of the charging session.

    Fully Customizable

    Customized Service: Logo, colors, language… to meet the unique needs of different businesses and users.
    Modular Custom: can be tailored to fit specific requirements, whether it’s for a particular vehicle type, location, or energy output

    Specification

    • DC Fast EV Charger 60kW-240KW

    DC Fast EV Charger 60kW/80kW/120kW/160kW/180kW/240KW

    Mechanical

    • Dimension(W*D*H) 800x700x1800mm
    • Weight 300–380kg
    • Cable Length Standard 5m or Customized

    AC Input

    • Input Vlotage 380V±15 % /400V±15%/440V±15 %
    • Input Voltage Type TN – S(Three Phase Five Wire)
    • Input Current Rating Max 250A
    • Working Frequency  45~65Hz
    • Power Factor ≥0.99
    • Efficiency≥96 %

    DC Output

    • Output Voltage 200V – 750V / 50V – 1000V
    • Charging Connector Dual GBT / CCS, or CCS / GBT + CHAdeMO
    • Simultaneous Output Mode Dynamic Distributor
    • Output Current DC – CCS 200A; GBT 250A; CHAdeMO 125A;

    Interface

    • Display 7” LCD Touch Screen
    • User Authentication QR Code, RFID, Mobile APP, POS / Credit Card(Optional)
    • Network Connection Internet Access Via 4G /Ethernet
    • Communication Protocols OCPP1.6

    Protection

    • Electric Protection Over-Current, Over-Voltage, Under-Voltage, Ground-Fault, Over-Temperature, Short-Circuit & Surge Protection…etc.
    • Working Temperature -30℃ ~ +50℃
    • Protection Level IP54
    • Warranty 2Years
